Pendulum Impact Tester

Our Products

LOEMS

Series PH(25-50 Joule)

Series PH(150-750 Joule)

Series BRM \Series BRM - M

Series DC

Series HO

Force, deflection (bending) & crack opening measurement or experimental determination of the intensity of stress, KID and KIC-factor.With ultra high speed (8 channels at 2.5 MHz, one channel 20 MHz) ADC board for data acquisition.Including software package for research purposes.

Patented Laser Opto-Electronic Measuring System

The determination of the factor of intensity of distortion KIC or KID in dynamics requires the measurement of the crack opening displacement (COD) according to the applied force. While the measurement of these two parameters, force and particularly COD, poses no problems under normal test conditions, (ambient T° and slow distortion), it is not the case when the conditions become extreme, as in the case of a shock test with an impact pendulum where the use of a precision extensometer is not possible. In order to measure the distortion during a shock test, an optical method without contact is required, permitting measurement of distortion directly on the specimen during the rupture (test time about 300 ms) not only in the direction of application of the force (deflection) but also in the transversal sense (COD). A high-speed acquisition card (20 MHz, 8 channels) ensures a very precise sampling range.

Exchangeable pendulums with strikers anvils and specimen supports. With motorized hammer lifting system including electro-magnetic brake Standard for Type PH 50 Joule, Option for Type PH 25 Joule.With quick, easy and accurate specimen centering device.

Impact Pendulum Testers

Rigid design avoiding secondary swinging. Electronic high resolution angle-transducer (encoder) and interface board for PC with connecting cable. Electro-mechanical safety release mechanism of the pendulum. Electro-magnetic brake for the pendulum.Safety guard with remote control and safety door.Option for IZOD testing.

Versatile, extendable Pendulum Impact Tester with adjustable energy/velocity designed for non-instrumented or instrumented tests according to Chirpy, IZOD or Impact Tensile Tests. This easy to use impact tester is available in the energy range from 150 to 450 Joule and fully comply with EN 10045-2, ASTM E23, ISO 148 and ISO 83.

Impact Pendulum Testers

Versatile unit with easy changeable energy range with 150 or 300 Joule hammer or add-on weights for 450 Joule, and 750 Joule
Safety lock to hold the pendulum in its raised position
Vibration free release of pendulum
Easy sample mounting by pliers or by automatic sample centering
Electric break that stops the pendulum on its highest position on the return swing for most productive testing
Motorized pendulum return to the latched starting position
4-digit digital display for direct absorbed energy reading
Optional automatic hammer recognition
Step-less adjustable energy/velocity allows Charpy, Izod or Impact Tensile Tests to be performed from 20%-100% of energy range and impact velocity from 2.6 m/s to 5.5 m/s
Safety guard with interlock so that the test cannot be started unless the guard is fully closed
The guard can be fully opened for maintenance or cleaning
Save two-hand or automatic pendulum release when the door is closed for low temperature tests (<5 sec)
Easy exchangeable strikers (EN or ASTM) and anvils
Stiff and low-vibration two-column design
Low friction bearings for maximum accuracy
Ergonomically sample tray
Interface to PC to run w+b Impact Software for custom configuring, calculation, statistical evaluation, reporting and exporting of tests and results

Extendable with instrumentation package with strain gauged striker, optional deformation measurement, and ultra-high speed data acquisition system and data analysis software. The laser opto-electronic-measuring-system for deflection (bending) and crack opening measurement for the experimental determination of the intensity of stress, KID/KIC-factor can also be attached.

Designed for cutttingCharpy V and U notches and Izod V notches in 10 mm square alloy steel specimens.

Broaching Machines for Charpy V and U Notches

Intended for bench mounting, this robustly constructed machines cuts the notches by means of a specially designed multi-toothed broach which is drawn across the specimen by rotating the spooked hand wheel for Series BRM-M manual models or by pressing down button at the motorized Series BRM models. A Hand Vice for holding the specimen is built onto the machine body and the tooling includes the adjusters and stops necessary to ensure notch depth and position are correctly set. Attachments are available to facilitate most common specimens. Broaches are not included and must be ordered separately from the range available. An operational floor-to-floor time of 17 secs. can be expected, although if a continuous heavy workload is envisaged we would strongly recommend our Motorized Machine be considered.

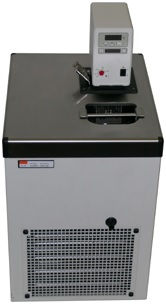

With digital controller, air - cooled version. This refrigerated circulator is equipped with a bath opening for direct temperature controlling samples. The built-in CFC-free cooling circuit enables efficient heat removal.

Cooling Chambers for Impact Testing Samples

This unit is often used to replace expensive tap water cooling; robust design using high grade stainless steel and temperature resistant polymer with sealed bath cover; removable fan grid allows easy cleaning; bath is equipped with handles and drain opening; 2-speed power-pump to reduce turbulences in open baths, wear-free; integrated overload protection; user-resettable, adjustable over temperature cut-out and low liquid level protection; easy to operate by only 4 navigation keys; electronic PID control using a highly sensitive sensor for excellent temperature accuracy; RS 232C interface as standard; user-defined fixed temperatures with separate RTA for each temperature; display resolution selectable between 0.1 and 0.01 °C; limitation of the usable temperature range by high and low temperature setting; RTA = Real-Temperature-Adjustment. User-adjustable correction factor to meet ISO 9004; Alarm indication by FIS = Fault-Identification-System. The reason for any malfunction is clearly displayed; built-in ETC (External Temperature Control) with a connection for an external Pt 100 sensor.

This apparatus is meant for impact tests to be carried out at low temperatures.

Sample Pre-Conditioning Chambers

It is made from double chambered stainless steel with isolating cavity wall from foamed polyurethane 65 mm thick. Complete with double chambered cover and specimen rack.

Dry-Ice Maker: This device instantaneously produces the quantity of dry ice (solid CO2) required to reach temperatures down to -80 °C. The dry-ice maker must be connected to a liquid CO2 bottle with connecting pipe and it produces 100g dry-ice tablets, having Ø 75 mm and 25 mm thickness.

Pliers special-shaped, pliers to take cooled specimens from the bath and place them directly into the Impact Tester.
Thermometer for the measuring of the bath temperature of test bars for impact tests, digital display with scale from –200 to +1372°C
